Industrial Scanner featuring unparalleled flexibility and efficiency
Advances in inspection technology have yielded a highly versatile high-resolution system for 2D X-ray inspection and 3D computed tomography (microCT and nanoCT®) and 3D metrology. CT scanning of smaller assets is now more efficient than ever thanks to up to two times faster microCT scans and doubled resolution.

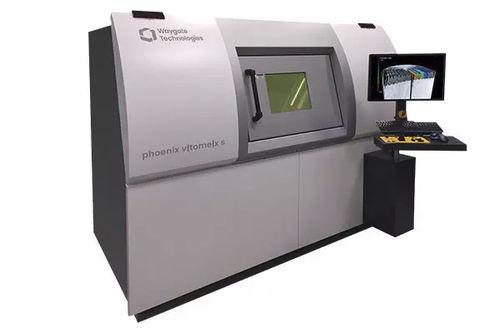

The Phoenix V|tome|x S 240 is one of the few CT systems worldwide combining the highly efficient Dynamic 41 detector technology and High-flux|target — enabling high image quality as it scans much faster, or with improved accuracy, and truly revolutionizing inspection.

Industrial microCT and nanoCT Scanning starts here
Whether you need to increase speed, detection detail, or do both, the Phoenix V|tome|x S240 Waygate Technologies, a Baker Hughes business, can be formatted for any 3D industrial or scientific microCT task. This CT scanner is ideally suited to meet inspection challenges in the electronics, R&D, scientific, and automotive industries.

To allow high flexibility, the V|tome|x S240 may optionally be equipped with both, a 180 kV/20 W high-power nanofocus X-ray tube and a 240 kV/320 W microfocus X-ray tube. Due to this unique combination, the system is an ideal tool for a wide range of applications from extreme high resolution nanoCT scans of low absorbing materials with best detail detactabilty of 0.2 micrometer as well as for 3D analysis of higher absorbing objects of up to 15 kg weight and 500 mm in diameter with microCT.

Parameter Name	Parameter Value
Technology	X-ray 3D computed tomography
Sector	industrial
Other characteristics	high-resolution
